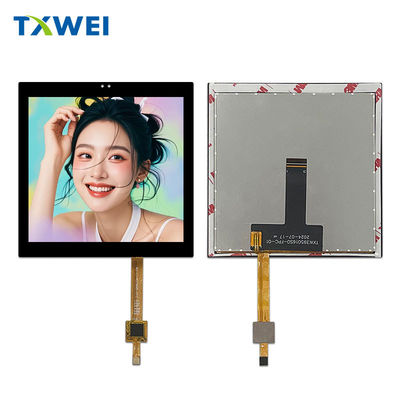

3.95-inch TFT LCD display screen tft480 × 480 driver ST7701SN interface 2 Lane MIPI

MOQ: 1
fiyat: Anlaşılabilir
teslim süresi: 7-16 gün
Ödeme yöntemi: L/C, D/A, D/P, T/T
Tedarik kapasitesi: 10000 pcs
Detay Bilgi
Ürün Tanımı
Detay Bilgi
Menşe yeri
Shenzhen
Marka adı
TXWEI
Sertifika
CE FCC ROHS
Model numarası
TXW395016S0-BST
Belge
TXW395016S0-BST_SPEC.pdf
Piksel sayısı:
480*480
Görüntüleme yönü:
IPS
Ekran Arabirimi:
2 Şeritli MIPI
Parlaklık:
500 nit
Aktif alan:
71.86*70.18 (mm)
Anahat boyutu:
83*83*3.06 (mm)
Çalışma sıcaklığı:
-20+70 ℃
Saklama sıcaklığı:
-30+80℃
Dokunma Teknolojisi:
G+F+F
dokunmatik arayüz:
IIC
Dokunma IC:
GT911
Vurgulamak:

3.95-inch TFT LCD display

,

TFT LCD screen with MIPI interface

,

480x480 resolution TFT display

Ürün Tanımı

Product Name:
TXW395016S0-BST 3.95" TFT LCD Module with Capacitive Touch Panel (480x480, MIPI Interface)
Meta Description:
Discover the TXW395016S0-BST, a high-resolution 3.95-inch TFT LCD display module with 480x480 pixels, MIPI DSI interface, and capacitive touch. Ideal for smart home devices, industrial control, and handheld equipment.

Product Overview

The TXW395016S0-BST is a compact, high-performance 3.95-inch TFT LCD module designed for applications requiring vibrant color display and reliable touch input. With a resolution of 480×480 pixels, 16.7M colors, and a capacitive touch panel (CTP), this module delivers sharp visuals and responsive user interaction.
Manufactured by Shenzhen Tianxianwei Technology Co., Ltd., the TXW395016S0-BST integrates a ST7701SN driver IC, supports a 2-lane MIPI DSI interface, and features all-viewing angle technology, making it ideal for modern embedded systems and smart devices.

Key Features

  • Display Size: 3.95 inches
  • Resolution: 480×480 pixels
  • Color Depth: 16.7M colors
  • Interface: 2-lane MIPI DSI
  • Touch Panel: Capacitive (G+G structure)
  • Driver IC: ST7701SN
  • Touch Controller: CST340
  • Backlight: White LED (12 LEDs, edge-lit)
  • Viewing Angle: All-viewing (wide angle)
  • Operating Temperature: -20°C to +70°C
  • Storage Temperature: -30°C to +80°C
  • Module Dimensions: 74.66 × 76.53 × 2.06 mm
  • Module + CTP Dimensions: 81.80 × 84.95 × 3.54 mm


Module Function Description


Pin No.

Symbol

LCM  Functional

1

LEDA

Power supply for backlight anode input terminal.

2

LEDA

Power supply for backlight anode input terminal.

3

LEDA

Power supply for backlight anode input terminal.

4

NC

NC

5

LEDK

Power supply for backlight cathode input terminal.

6

LEDK

Power supply for backlight cathode input terminal.

7

LEDK

Power supply for backlight cathode input terminal.

8

LEDK

Power supply for backlight cathode input terminal.

9

GND

Power Ground

10





11

MIPI_2P(NC)

NC

12

MIPI_2N(NC)

NC

13

GND

Power Ground

14

MIPI_1P

High speed interface data differential signal input/output pins

15

MIPI_1N

High speed interface data differential signal input/output pins

16

GND

Power Ground

17

CLKP

High speed interface clock differential signal input/output pins

18

CLKN

High speed interface clock differential signal input/output pins

19

GND

Power Ground

20

MIPI_0P

High speed interface data differential signal input/output pins

21

MIPI_0N

High speed interface data differential signal input/output pins

22

GND

Power Ground

23

MIPI_3P(NC)

NC

24

MIPI_3N(NC)

NC

25

GND

Power Ground

26

IOVCC

Power Supply For I/O.

27

RESET

Reset signal input terminal. Active at ‘L’.

28

GND

Power Ground

29

IOVCC

Power Supply For I/O.

30

VCC

Power Supply For LCD.

31

VCC

Power Supply For LCD.
3.95-inch TFT LCD display screen tft480 × 480 driver ST7701SN interface 2 Lane MIPI 0

Applications

The TXW395016S0-BST is suitable for a wide range of applications, including:
  • Smart home control panels
  • Industrial HMI devices
  • Medical equipment displays
  • Portable instruments
  • Consumer electronics
  • IoT terminals

Reliability & Environmental Testing

This TFT LCD module has passed rigorous reliability tests, including:
  • High/Low Temperature Storage and Operation
  • Thermal Shock Cycling
  • High Humidity Storage (90% RH)
All tests ensure long-term stability and performance in demanding environments.

Customization & Support

We offer customization options for FPC design, backlight brightness, and interface configuration. Technical support and datasheet access are available upon request.
